Case Study

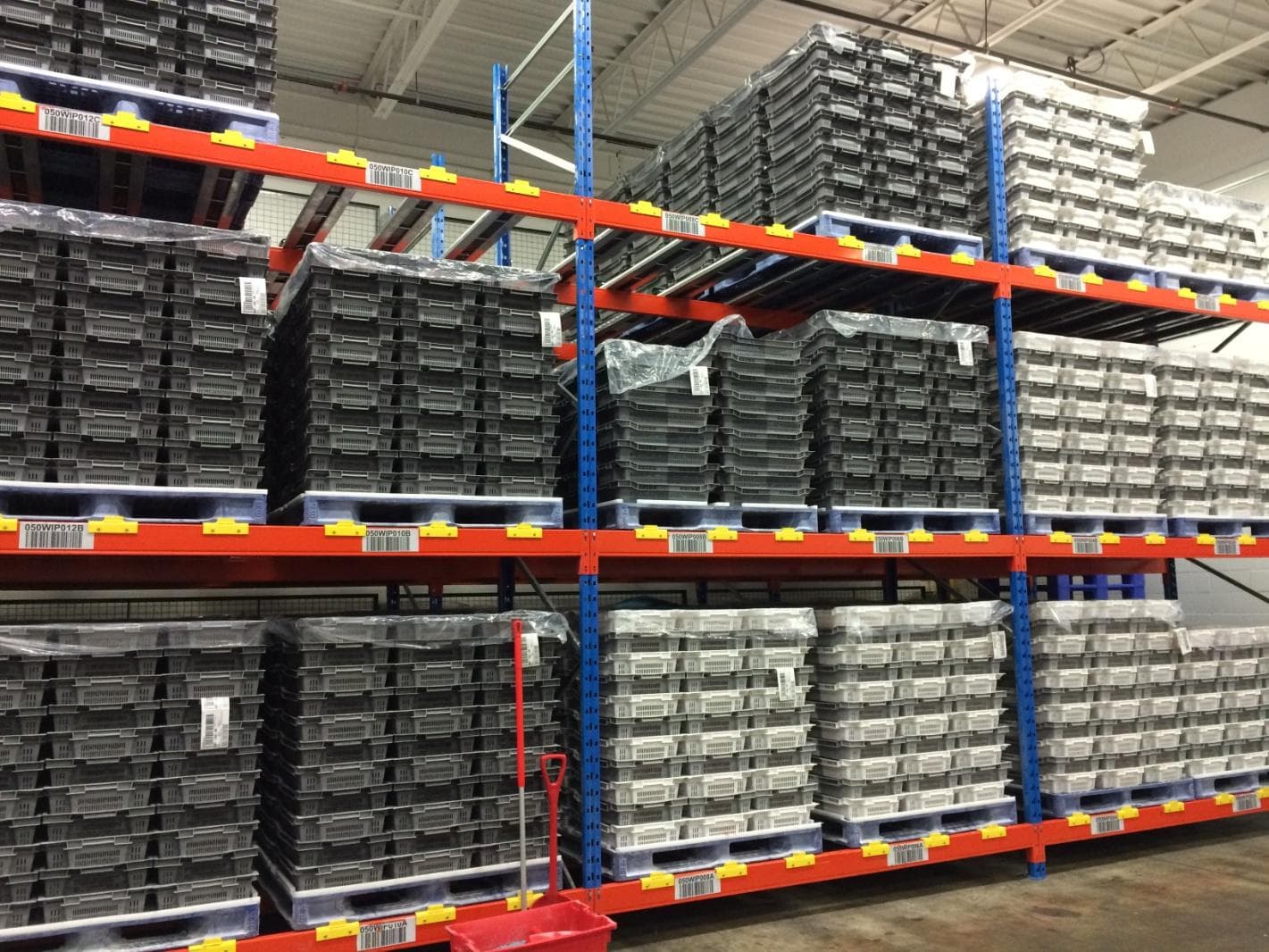

Plastic pallets stored on Spring Rail
Spring Rail pallet lane viewed from the side

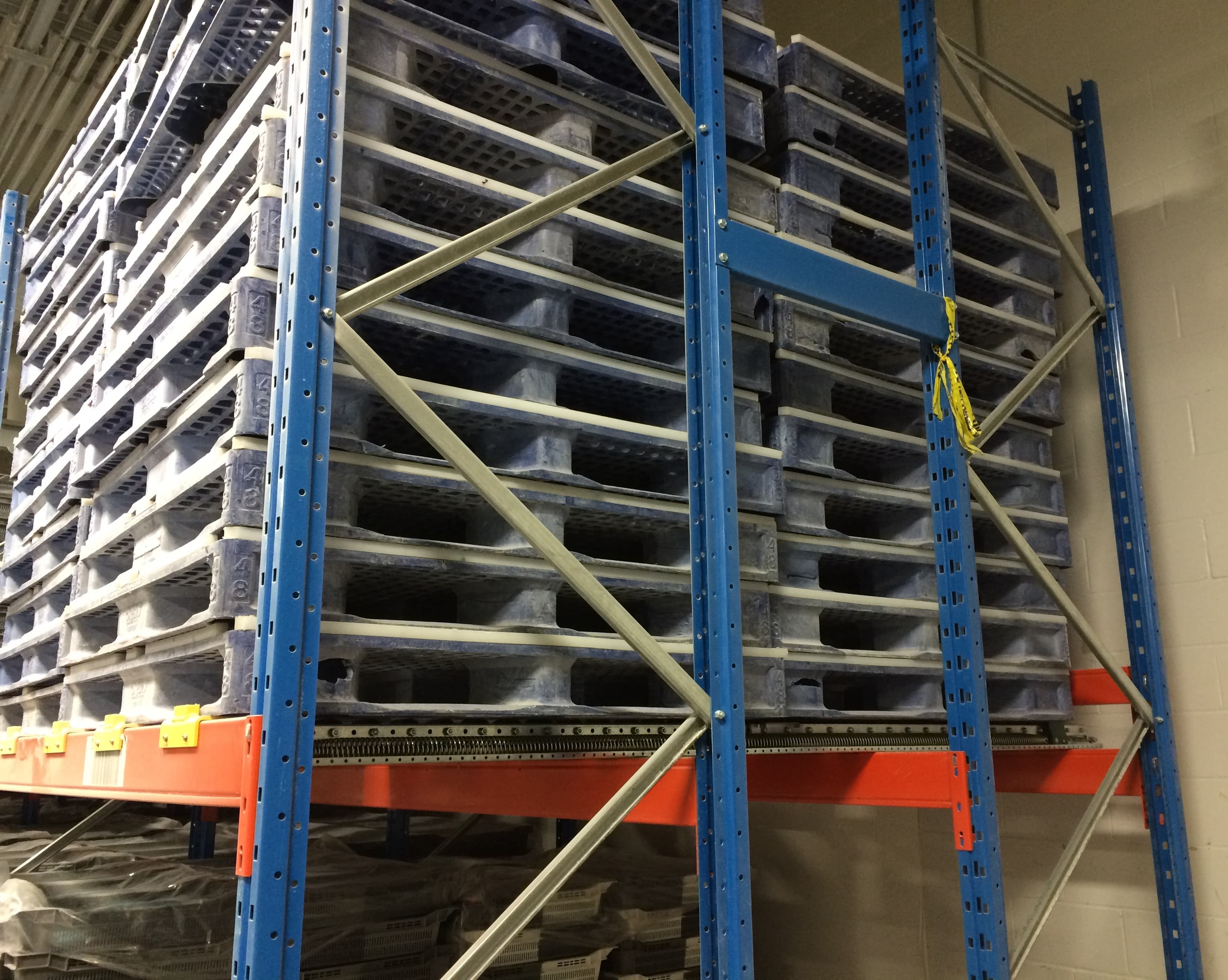

Design: plastic pallet, 2 Pallet deep lane with 2 track per lane

Spring Rail three-track system diagram
Spring Rail system installed under a pallet
ApplicationEach lane able to store any of the 7 difference size and weight pallet. Pallet size vary from 35" to 42", weight vary from 550lbs to 1280lbs.

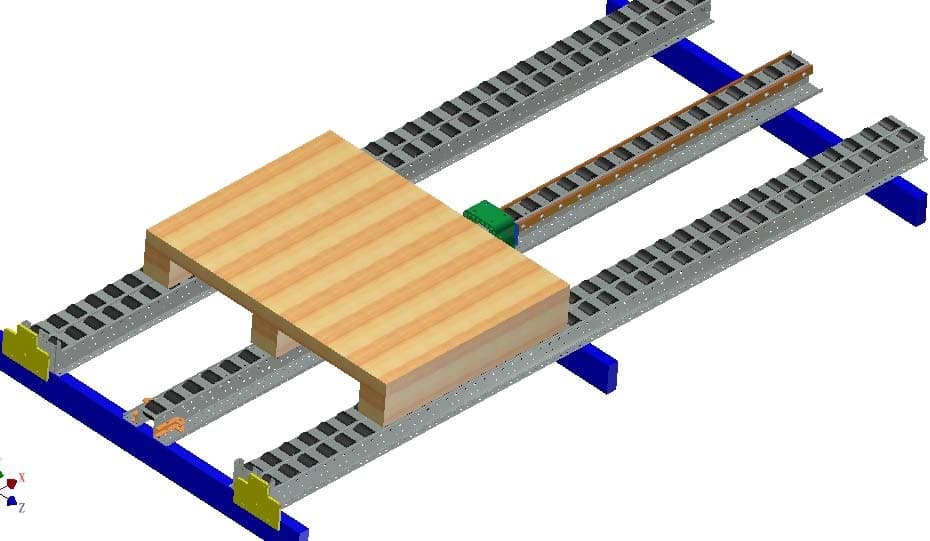

Design3 track system: double roller track on outside + spring rail in center. Center track spring rail equipped with heavy duty spring.

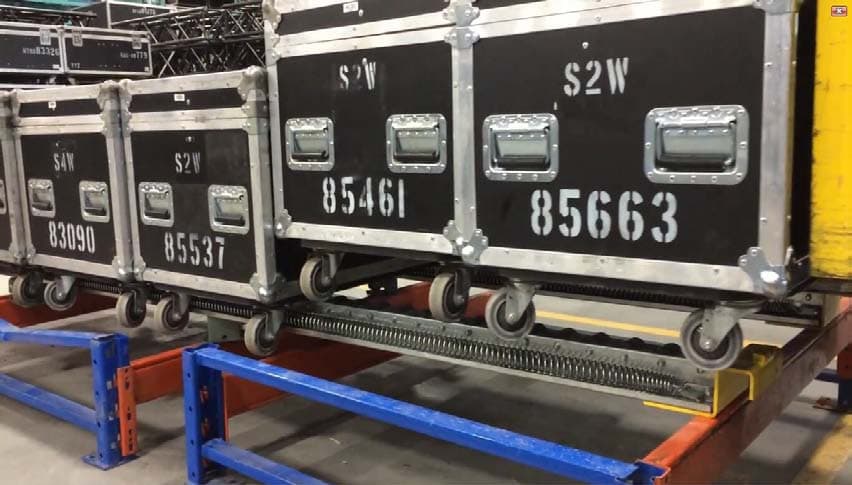

Road cases positioned on Spring Rail

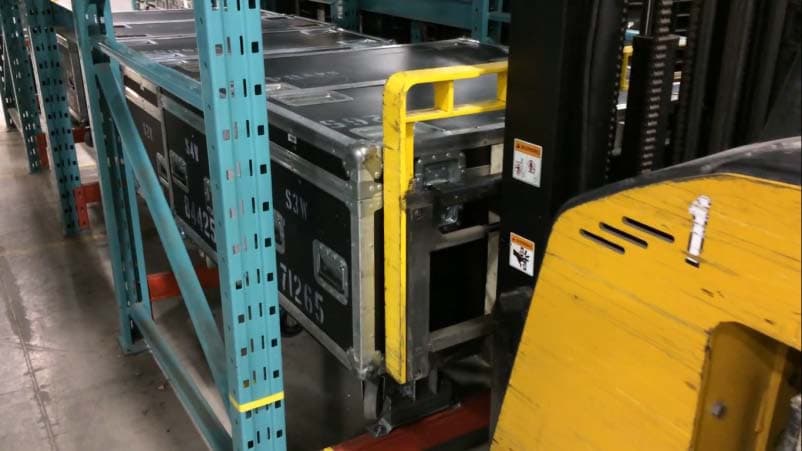

Road case moved with a forklift beside Spring Rail

Spring Rail provide a perfect solution to the Road Case Application. Please consult Sunring for more information.
